Reverso Fuel Polishing Module

See More Information for this Product

Features:

• The only true Fuel Polishing Module available
• Just add the filter of your choice
  • Adaptable with any filter
• Easy to install module turns any filter into a comprehensive fuel polishing system
• Works with most standard filters
  • Choose the filter that suits your needs. (e.g. Separ Filter, Racor, Fleetguard, Yamaha, Sierra, Baldwin, Cummins, Mallory, Dorman, Fram, etc.)
• Compatible with middle-distillate fuels and fuel oils
  • Compatible with diesel, biodiesel, and kerosene (Not For Gasoline)
• Reverso recommends you turn the fuel (3) times for an initial cleaning
• Once in maintenance mode, you can perform this cleaning once a week
• Continuous use is not required
• Recommended Run Cycle = Volume of the Tank x 3 Flow Rate
• Water resistant enclosure
• Available in 12 Volt (19-3697) and 24 Volt (19-3698)
• Heavy duty gear pump (150 GPH)
• Digital timer
• Audio and visual alarm
• Automatic shut-off switch
• Water resistant aluminum enclosure
• Filter not included
• Can be installed on the inlet or outlet side of the filter

Specifications:

• Flow Rate: 2.6 GPM / 10 LPM
• DC 12V or 24V
• Ports: 1/2" Hose Barb
• Self-priming: 5 ft / 1.5m (wet gears)
• Max Work Pressure: 50 psi / 3.5 bar
• Max Work Temperature: 140F / 60C
• Maximum suction lift 10 ft
• Total discharge head not to exceed 30 ft

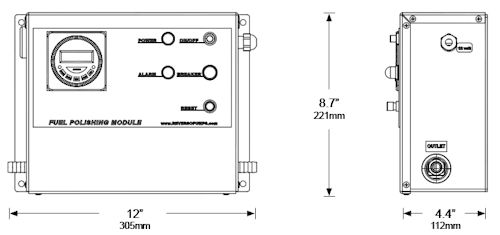

• Width 12" x Height 8.7" x Depth 4.4"
