Balmar 6-Series Light Duty Marine Alternator - 120 Amp

Balmar Light-duty 6-Series Alternators are engineered to replace most OEM alternators on a wide variety of marine gasoline and diesel engines. Available in outputs ranging from 70-amp to 150-amp at12 volts and 70 amps at 24 volts, 6-Series alternators provide a simple and effective tool for supporting upgraded battery systems and increased electrical loads. 6-Series alternators are available in three mounting configurations, which support four mounting styles; a 3.15" saddle mount that's typical of Yanmar engines, a 4" J-180 mount, and a single foot mount that's convertible to support 1" Motorola and 2" Delco style mounting configurations

Balmar Series 6 Model
60-120-SR-IG Specifications:

• Voltage: 12 Volt DC
• Amps: 120 A
• Mounting Style: 3.15" Saddle

General Features :

• Balmar 6-Series Alternators are know as the "alternator that carries a spare"
  • These alternators have patented, SmartReady® Internal Voltage Regulation which provides convenient, built in voltage regulation redundancy in the unlikely event of an external regulator should fail
• Balmar's premium, light-duty, 6-Series Alternators provide the ideal solution for stock alternator replacement with models in four popular mounting configurations, and
• Outputs range from 70 amps to 150 amps in 12V
• Outputs are 70 amps at 24 Volts
• Internal dual fans provide ample cooling and allow the alternator rotor to spin at speeds in excess of 12,000 rpm
• Includes a dedicated ground terminal
• Meets USCG, CE, SAE, ISO ignition protection standards for gas or diesel engines.

General Specifications:

• Alternator Style: Small case, Positive field excitation (P-type)
• External Regulation: P-type, fixed voltage or multi-stage
• Internal Regulation: Fixed voltage regulator
• Case Construction: Ventilated cast aluminum with a high-impact plastic rear cover
• Finish: White powdercoat
• Cooling: Dual internal fans
• Bearings:
  • Sealed ball bearing.
  • Heavy duty radial (front)
  • Heavy duty radial (rear)
• Tensioning Arm: Five position crown; M8 x 1.25
• 6-Series Available Outputs:
  • 70 Amp / 12 Volt
  • 100 Amp / 12 Volt
  • 120 Amp / 12 Volt
  • 150 Amp / 12 Volt
  • 70 Amp / 24 Volt

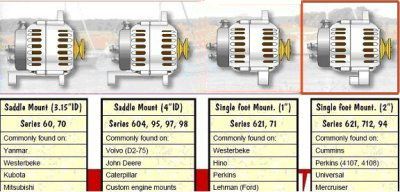

• Mounting Styles:
  • 3.15" I.D. Saddle (Model 60)
  • 4" I.D. Saddle (Model 604)
  • 1" with 2" adapter / Single Foot (Model 621)
• Mounting Foot Bore:
  • (60/604) 8mm or 10mm
  • (621) 1" foot / ½", 2" foot / 3/8"
• Grounding:
  • Dedicated terminal (Case isolated)
  • Stud dimensions: M8 x 1.25
• Positive Output:
  • Threaded stud
  • Stud dimensions: M8 x 1.25
• Lamp Output:
  • D+ (low voltage / low current)
  • Stud dimensions: 10 x 24
• AC / Stator Output: 12 pulse. Stator output wire included in pigtail plug.
• Voltage Regulation:
  • 14.1-volt (12V internal)
  • 28.2-volt (24V internal)
• Operating Temperature: 180° F / 82° C to 225° F / 108° C
• Low RPM Cut-in: 1,320
• Maximum Alternator RPM: 15,000
• Diodes +/-: 3 (positive), 3 (negative); 50-amp rated
• Ignition Protection: USCG Title 33, ISO J1187, SAE 8846, CE
• Warranty: One year limited
