All MDP Electronics Battery Chargers and accessories are CE marked and manufactured to UL and ABYC specifications.
| Model # 99030 / 12V40A |
| Input |
| Input Voltage | 115V/230V (+/-15%) (Auto switch) |
| Frequency | 50Hz/60Hz (+/- 10%) |
| Cos | 0.9 typ. |
| Efficiency | 80% typ. |
Max. Current
115V/230V | 7A/3.5A |
| Fuse | T10A 250V (5 x 20mm) |
| Output |
| # of Outputs | 3 isolated outputs |
| # of Charging Curves | 4 programs, positions selected by DIP Switch - 1 LiFeSO4 w/BMS |
| Charging Curve | IUUo + Weekly Auto Equalization |
| Weekly Equalization | Automatic |
| Voltage Share | +/-2% |
| Ripple | < 1% pp (BW < 20MHz) |
| Fuse | 2 x F25A 32V Automotive (mini) |
| General |
| Display | Tr icolor LED |
| Night/Silent Mode | By button |
| Operating Temperature | +14° F to +122° F |
| Storage Temperature | -4° F to +158° F |
| Humidity | 10% to 90% 9 (without condesation) |
| Ventilation | Forced Fan Cooling |
| Security | EN60335-2-29 (2002) |
| Housing | Powder Coated Aluminum |
| Mounting | 20 Screws - #8 |
| Dimensions (in) | 3.78D x 4.72W x 13.94H |
| Weight (lbs) | 4.2 |

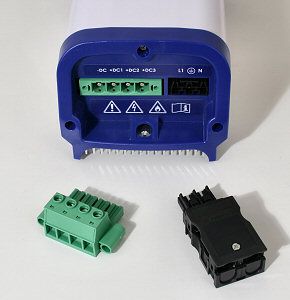

| Input Terminals | 20A 230V, 12AWG max.
(Ref.: 770.813/G11-000 (WINSTA - WAGO) |
| Battery Terminals | 40A 630V, 8AWG max.
(Ref.: PC 6-16/4-G1F-10,16 (PHOENIX CONTACT) |
