Profurl NEX 1.5 Flying Sail Furler
Item #:
615315
Brand:
Profurl / Wichard
Model #:
NEX 1.5
Packaged Weight:
2.00
Lbs.
List Price:
$1,499.00
Our Price:
$1,149.99
Status:
Ships Direct

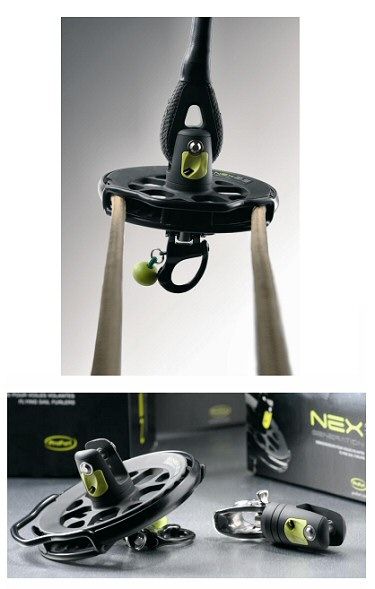

Profurl NEX 1.5 Flying Sail Furler
Features:
- Designed for light and heavy flying asymmetrical headsails between beam and broad reaching
- Light sails: gennaker, code zero, screacher
- Heavy sails: solent, reacher, staysail
- NEX 1.5 system includes spool and swivel, clevis pin snap shackle (lower terminal) and HR D shackle (upper terminal)
- Anti-twist torque rope (not included) which transmits rotation up to head of the sail is fitted inside the luff of the sail and is supplied by a sailmaker
- Special groove design of S-Grip ensures better line grip, easier furling and minimal wear on furling line
- Optimal spool diameter provides ideal torque to make furling easier with less effort
- Size and weight of spool, swivel and terminals optimized to improve sailing performance and ensure easier handling of system
- Safe System (removable line) allows you to stop running the furling line during sail deployment
- Prevent accidents or damage caused by a free-running line
- maneuver more quickly and easily
- Prevent excessive line wear
- I-Connect device allows quick attachment or removal of sails
- Quick Fit feature enables rapid fitting of continuous line
- System is quickly installed and adjusted with a single pre-fitted screw
- Combined with a 2:1 purchase, NEX is an efficient replacement to a removable stainless steel headstay
- 3-year worldwide limited warranty
Specifications:
- Profurl Part No. NEX 1.5
- Typical Boat Length: 32' - 39'
- Max. Working Load: 3300 lbs
- Max. Sail Area: 645 sq. ft.
- Spool Diameter: 5-5/8"
- Continuous Drive Line Diameter: 25/64" (not included)
For further details see User's Guide for this product
Click here for a Dimensional Drawing Spec Sheet (PDF)
