Pod Only - Other Items Sold Separately
Scanstrut Scanpod Helm Pod
Item #:
257573
Brand:
Scanstrut
Model #:
Multiple Models Available
Shipping Weight:
7.80
Lbs.
List Price:
$569.00
Our Price:
$394.99
Please enter quantity below.
With great design features, the Scanstrut Helm Pod is a perfect choice for all cockpit configurations. With options to fit radar displays, chartplotters and standard navigation instruments, the Helm Pod is available in 2 colors, modern Silver or traditional White.
Features:
Features:
- Universal Helm Fixing
- Fits pedestal rails from 0.98" - 1.33".
- Using a unique clamping system, the Pod can fit rail widths from 7" upwards.
- Secure and Watertight Install
- Saddle system supports the Stainless tubing enabling a secure and rigid fit onto the pedestal
- Ensures a watertight seal at cable entry
- No Drill Fixing Kit
- Customized U-bolts fit around rail and through the saddles into the back of the pod
- Eliminates the need for time consuming and awkward drilling of the Stainless rail
- Hassle Free Install and Service
- Fixings fit from back to front cutting their threads into injection molded ABS inserts designed into the pod front
- The design allows for a quick and safe install and repeat servicing
- Increased Protection
- The pod seal is manufactured from a high tear strength silicone
- Very high resistance to heat and UV providing confidence that it will not deteriorate over time
- As a standard, the pod is provided uncut
Specifications:
Models: SPH-12-W, SPH-12D-S, SPH-12D-W - Designed for 3/4 Standard Instruments (e.g. ST60)
- Profile: Slim or Deep
- Overall Width: 16.7" (Deep Profile) / 15.5" (Slim Profile)
- Overall Height: 10.4" (Deep Profile) / 9.5" (Slim Profile)
- Maximum Cutout Width: 14.4" (Deep Profile) / 13" (Slim Profile)
- Maximum Cutout Height: 9.5" (Deep Profile) / 9" (Slim Profile)
- Pod Seal Material: high tear strength silicone
- Color: White or Silver

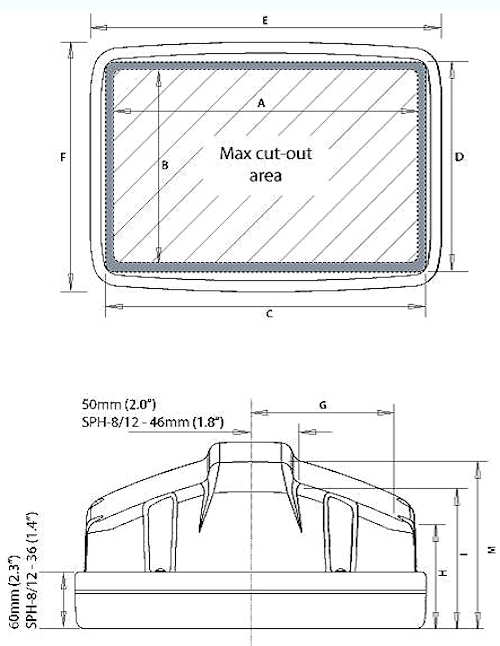

| Dimensions (See Schematic Below) | ||||||||||||
| A | B | C | D | E | F | G | H | I | J | K | M | |
| SPH-8D | 12.3 | 7.9 | 13.1 | 8.8 | 14.6 | 10.4 | 5.9 | 4.4 | 5.9 | 17.3 | 14.4 | 6.9 |
| SPH-12D | 14.4 | 9.5 | 15.1 | 10.4 | 16.7 | 12.0 | 6.5 | 5.5 | 6.3 | 19.1 | 15.9 | 6.12 |
| SPH-15D | 16.7 | 13.1 | 16.7 | 13.7 | 19.0 | 15.6 | 7.8 | 4.1 | 5.7 | 21.1 | 19.3 | 6.9 |
| SPH-7 | 8.5 | 5.4 | 9.4 | 6.25 | 10.8 | 7.7 | 4.3 | 4.25 | 5.35 | 11.6 | 10 | 5.7 |
| SPH-8 | 10.5 | 6.6 | 11.4 | 7.5 | 12.75 | 8.97 | 5 | 5.3 | 6 | 13.6 | 12.2 | 6.6 |
| SPH-12 | 13 | 9 | 14 | 9.5 | 15.5 | 11.3 | 6.7 | 4.3 | 5.7 | 16 | 14.5 | 10 |
