Tylaska H20 Halyard Shackle
Tylaska H20 Halyard Shackle
Tylaska H20 Halyard Shackle
Tylaska H20 Halyard Shackle
Tylaska H20 Halyard Shackle
Tylaska H20 Halyard Shackle

Tylaska H20 Halyard Shackle

  • Line Size: 5/8", Safe Working Load: 10,000 lbs
  • Allows for Use as a 2-1 Purchase, Includes Captive 17-4PH Stainless Pin
  • Machined from a Solid Block of Aluminum
  • Item #:
    608996058020
    Brand:
    Tylaska Marine
    Model #:

    TY1420

    Packaged Weight:
    0.65 Lbs.
    List Price:
    $268.19
    Our Price:
    $169.99
    608996058020 Tylaska Marine Tylaska H20 Halyard Shackle TY1420

    Features:

    • Tylaska's halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market
    • A captive 17-4PH stainless pin makes for trouble-free operation
    • The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles
    • Lines can also be permanently spliced for a fixed halyard
    • Tylaska CNC machines the 3D shackles from a solid block of aluminum
    • Type III hard coat anodizing protects against corrosion
    • Laser engraving identifies the product without sacrifice to strength or risk of corrosion
    • A new generation design of the H8 over our original H8 halyard shackles further improves corrosion resistance and provides more thimble bearing area for 2-1 applications
    • The cross pin is made from 17-4PH to resist wear and bending
    • The pin is made captive to prevent loss but still allows the full throat width of the clevis
    • The size was made to fit standard sail headboards without adding any unnecessary weight
    • Strength was optimized by computer and then verified by numerous "make and break" destructive tests

    See a complete table of Tylaska Halyard Shackle Specifications including dimensions, line sizes, and load limits

    Specifications:

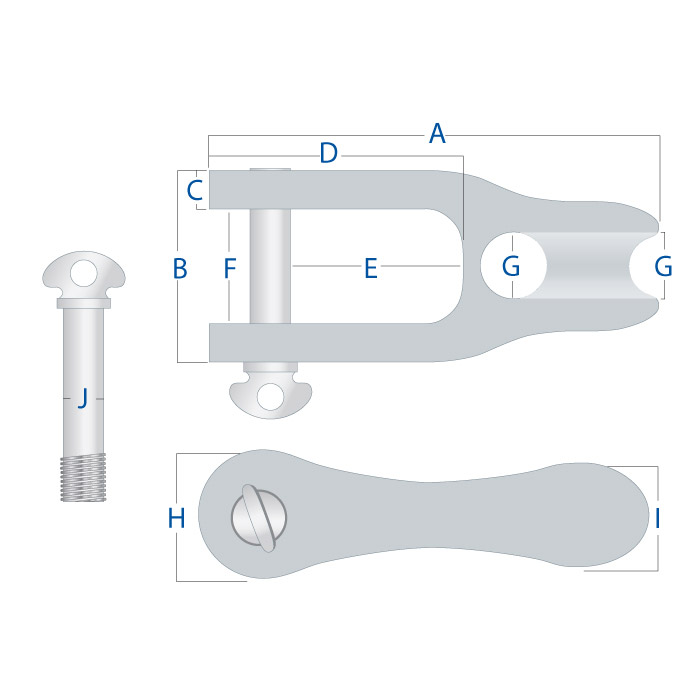

    • Dimensions: Inches (mm) See product images above.
      • A - Overall Length 5.25 (133.4
      • B - Overall Width: 1.833 (46.5)
      • C - Ear Thickness .416 (10.6)
      • D - Overall Throat Length:2.50 (63.5)
      • E -Effective Throat Length:: 1.44 (36.6)
      • F - Inside Throat Width: 1 (25.4)
      • G - Thimble Groove Width: .88 (22.4)
      • H - Overall Ear Height:1.58 (40.1)
      • I - Overall Thimble Height: 1.80 (45.7)
      • J - Pin Minimum Diameter: .5 (12.7)

    Tylaska H20 Halyard Shackle
    169.99
    Status:    null In Stock

    Features:

    • Tylaska's halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market
    • A captive 17-4PH stainless pin makes for trouble-free operation
    • The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles
    • Lines can also be permanently spliced for a fixed halyard
    • Tylaska CNC machines the 3D shackles from a solid block of aluminum
    • Type III hard coat anodizing protects against corrosion
    • Laser engraving identifies the product without sacrifice to strength or risk of corrosion
    • A new generation design of the H8 over our original H8 halyard shackles further improves corrosion resistance and provides more thimble bearing area for 2-1 applications
    • The cross pin is made from 17-4PH to resist wear and bending
    • The pin is made captive to prevent loss but still allows the full throat width of the clevis
    • The size was made to fit standard sail headboards without adding any unnecessary weight
    • Strength was optimized by computer and then verified by numerous "make and break" destructive tests

    See a complete table of Tylaska Halyard Shackle Specifications including dimensions, line sizes, and load limits

    Specifications:

    • Dimensions: Inches (mm) See product images above.
      • A - Overall Length 5.25 (133.4
      • B - Overall Width: 1.833 (46.5)
      • C - Ear Thickness .416 (10.6)
      • D - Overall Throat Length:2.50 (63.5)
      • E -Effective Throat Length:: 1.44 (36.6)
      • F - Inside Throat Width: 1 (25.4)
      • G - Thimble Groove Width: .88 (22.4)
      • H - Overall Ear Height:1.58 (40.1)
      • I - Overall Thimble Height: 1.80 (45.7)
      • J - Pin Minimum Diameter: .5 (12.7)
